470 Complete Hull-complete with Rudderstock, Robline ropes & measurement certificate

NZD $27500.00 EA ex GST
Part: 471001

Each boat is fitted with the following standard equipment:

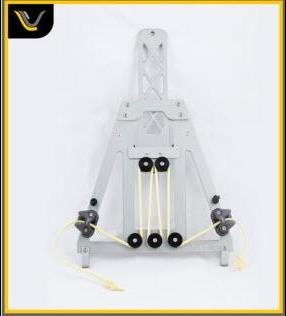

  • Mackay mast puller
  • North spinnaker bags
  • Non-skid 3M Decktread on gunwale

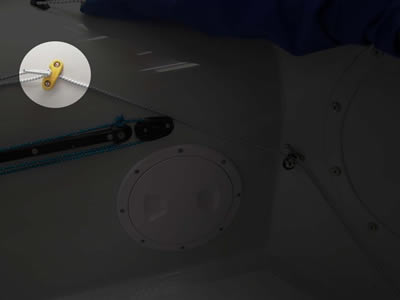

  • Four inspection ports in side tanks
  • Forward inspection hatches with inspection port fitted in port side hatch
  • Mylar transom flaps over 100mm X 25mm rounded holes
  • Mylar centreboard gaskets
  • Two Bailers mounted forward of traveller bulkhead

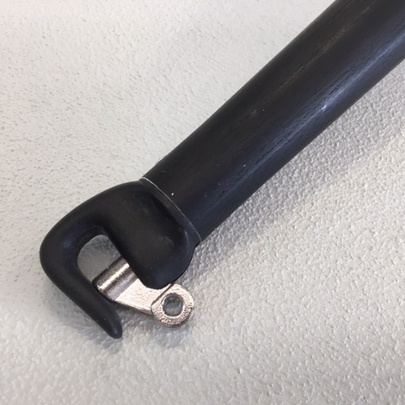

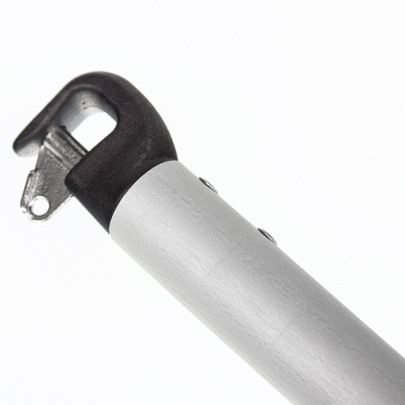

  • Mackay Rudder stock with Carbon tiller extension
  • Spare gel coat

Please configure your custom 470 and select your required accessories using the options below. All options are set to default to start with.

 470 Complete Hull-complete with Rudderstock, Robline ropes & measurement certificate is fully configurable using the Fitout tab ...

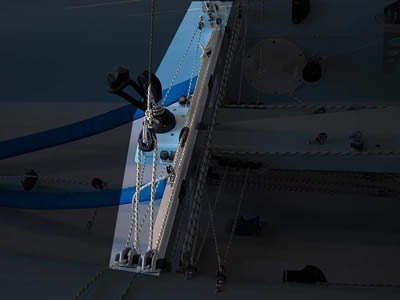

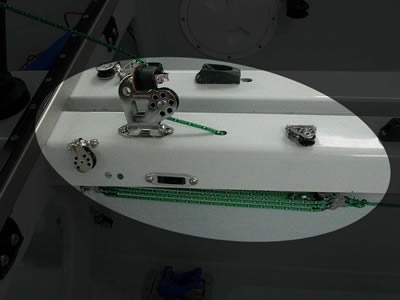

2:1 at base of mast then 6:1 along starboard side of centrecase with Harken (291) flip-flop cleat on top of centrecase immediately forward of traveller

2:1 at base of mast then 6:1 along starboard side of centrecase with Harken (291) flip-flop cleat on top of centrecase then thru exit box immediately in front of traveller to 6:1 take-up on shockcord

NZD $215.00  ex GST

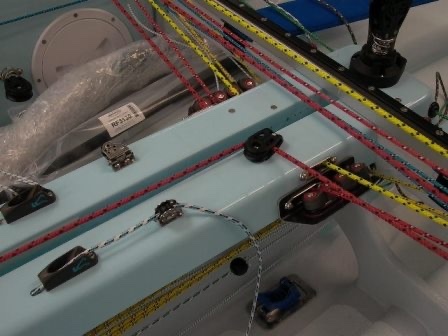

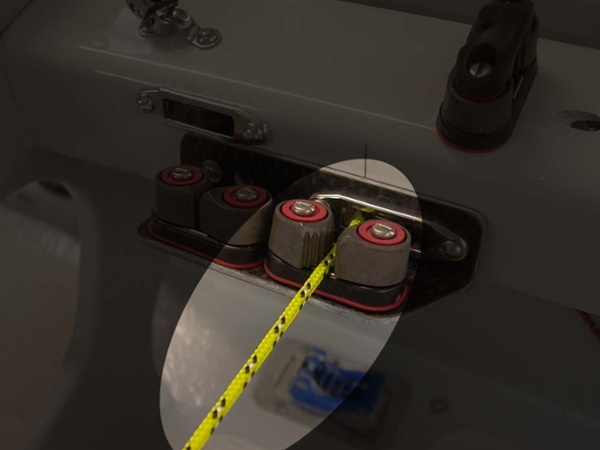

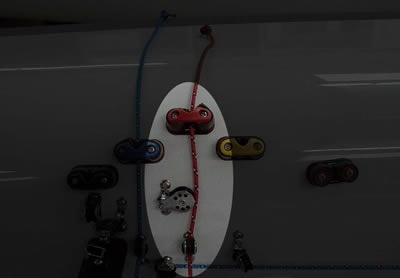

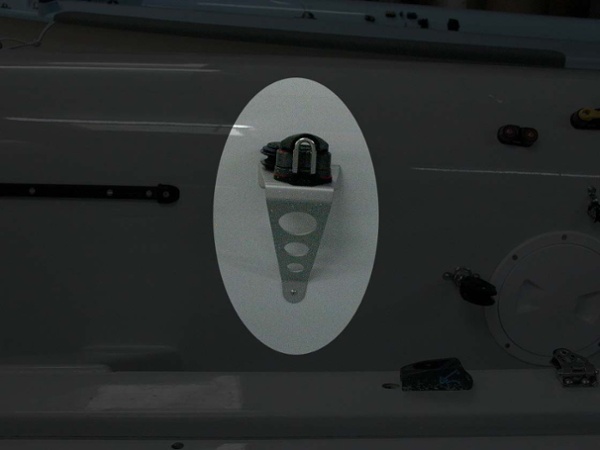

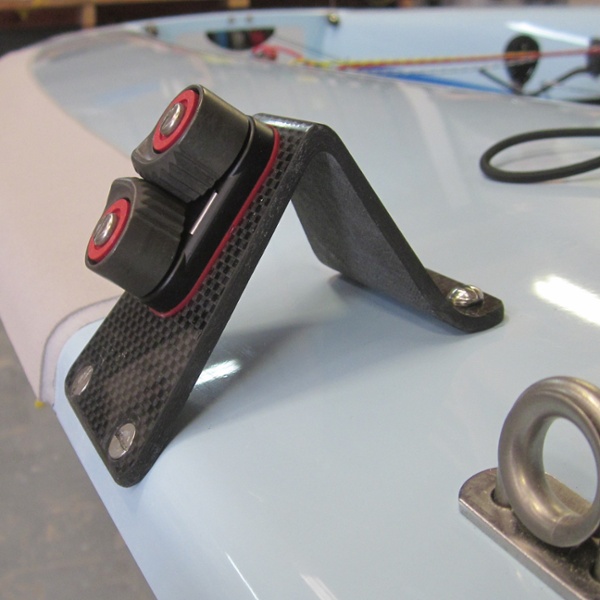

2:1 at base of mast then 6:1 along starboard side of centrecase with control lines exiting each side at the aft end of centrecase under mainsheet swivel and leading through Harken cleats (338) on carbon brackets to Harken blocks on side tanks immediately aft of traveller. Then line goes to 6:1 take-up system on port side of centrecase

NZD $470.00  ex GST

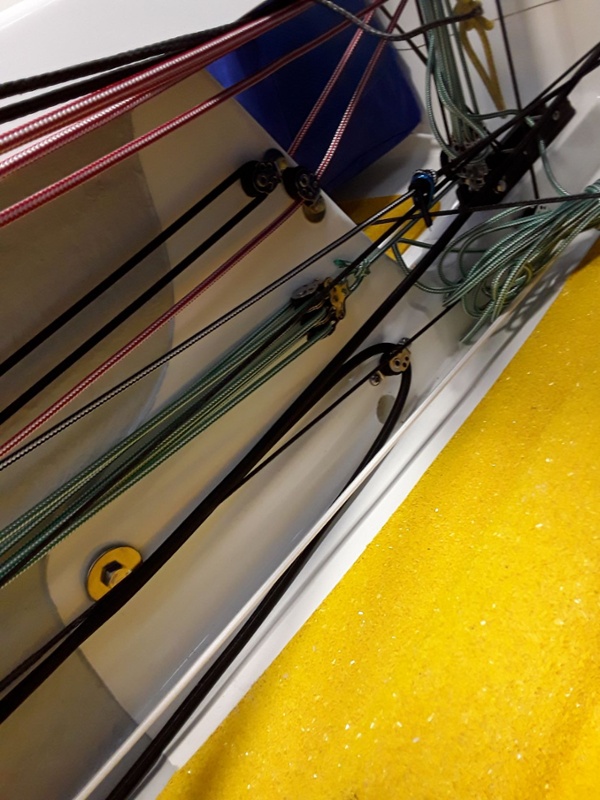

16:1 cascade system with Ronstan high load blocks and HK 406 and 408 blocks, leading to Harken cleat (338) with fairlead on side tank.

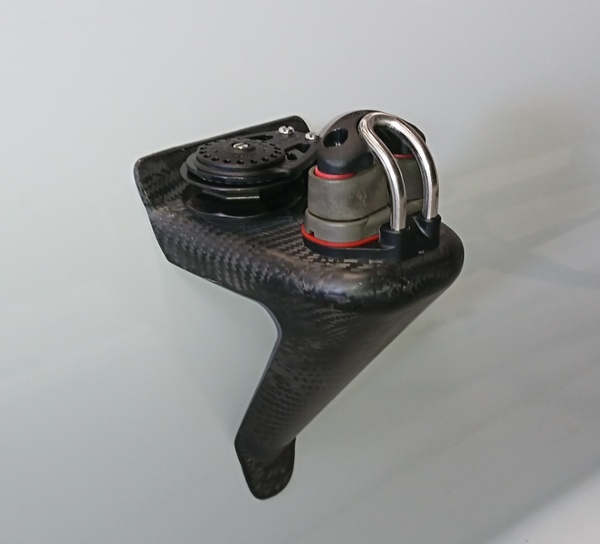

Continuous 16:1 cascade system with Ronstan high load blocks and Harken 406 and 408 blocks leading through Harken (338) cleats on carbon brackets mounted on the sides of centrecase to lazy blocks on side tanks.

NZD $55.00  ex GST

Continuous system with take-up. 16:1 cascade system with Ronstan high load block (RF3101D) and Harken (406) and (408) blocks leading through Harken (338) cleats on carbon brackets mounted on the sides of centrecase to lazy blocks on side tanks. Line then goes to 4:1 shockcord take-up on port side of centrecase.

NZD $340.00  ex GST

4:1 with Harken (404) blocks (view) to Harken cleats on side tanks

NZD $200.00  ex GST

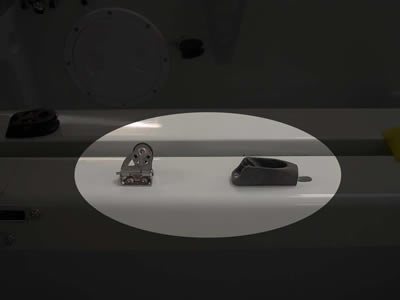

4:1 with Harken (404) blocks to Harken cam cleat (338) and flip-flop block (437) on centrecase

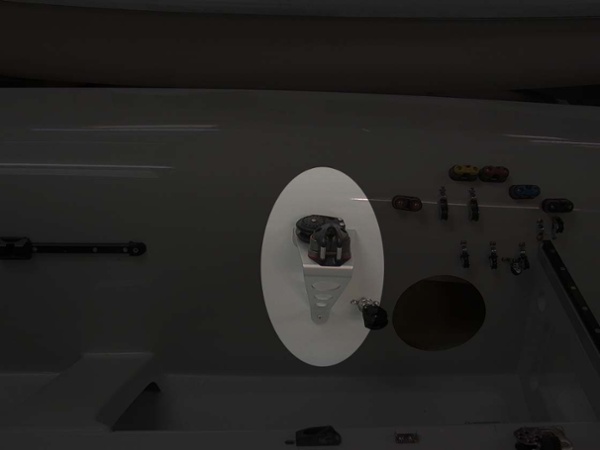

Continuous system with take-up. 2:1 at base of mast to 4:1 along side of centrecase with Harken (406) blocks exiting sides of centrecase through Harken cleats (338) on carbon brackets to Harken blocks (404) on side tank. Line then goes to 4:1 shockcord take-up along side of centrecase (Add NZD310)

NZD $390.00  ex GST

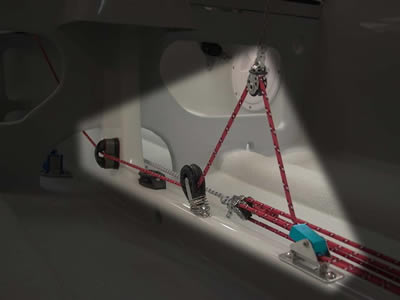

Separate up and down. 4:1 up & 2:1 down. Up has a 2:1 purchase from centreboard leading through exit box at front of centrecase to another 2:1 purchase under case on the starboard side. Line exits aft end of centrecase in front of traveller on starboard and extends to Harken block (224) on the side tank, Line then crosses the cockpit to another Harken block (224) and re-enters the centrecase to bungee take-up. Down leads through Harken cheek block (350), on top of the centrecase on the port side and extends to Harken block (224) on side tank. Line then crosses boat to another Harken block (224) and re-enters the centrecase to bungee take up.

NZD $445.00  ex GST

2:1 purchase up and down on continuous system with control line not extending to side tanks but passing through exit boxes on top at the aft end of centrecase with shockcord take-up.

2:1 purchase up and down on continuous system extending to lazy blocks on side tanks. Starboard side up, port side down with 5mm spectra control line crossing boat between. Shockcord take-up.

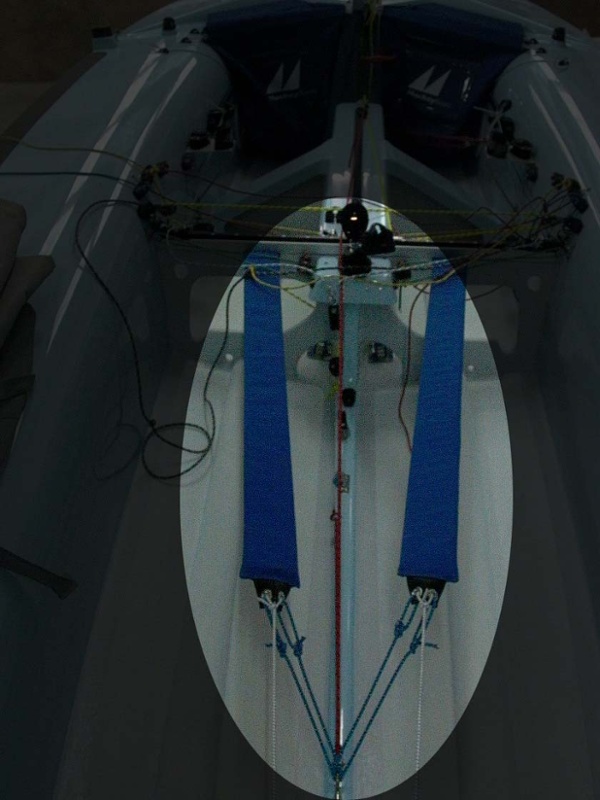

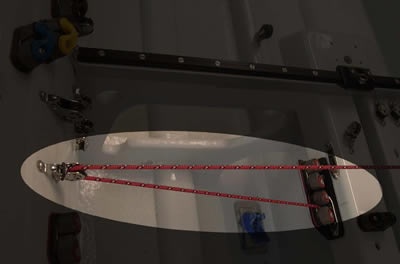

Double Harken 2700 cars on track with spectra bridle to Harken 338 cleat on side tank.

VMG Loop on Double Harken 2700 cars on track to Harken 338 cleat on side tank

NZD $990.00  ex GST

Spectra bridle without cars. 2:1 purchase with line to Harken 338 cleat on side tank.

Pump system on port side with Harken cleat (338) on side of centrecase just above floor under traveller to Harken 380 carbo block to Northfix cleat to 5:1 shockcord take-up. Helmsman trip line just behind mainsheet traveller.

1:2 system on port side with Harken 150 cleat mounted on 20mm fairing on keelson

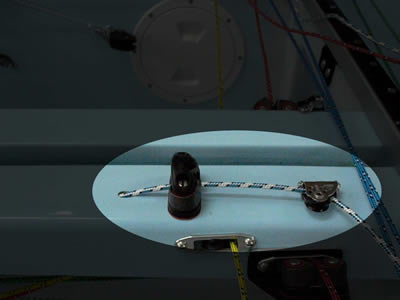

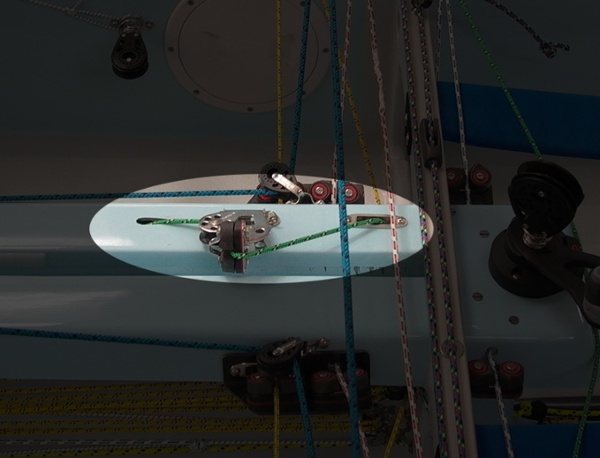

To Harken cam cleat (338) and flip-flop block (437) on starboard side top of centrecase

To clam cleat and Harken flip-flop block (437) on starboard side top of centrecase

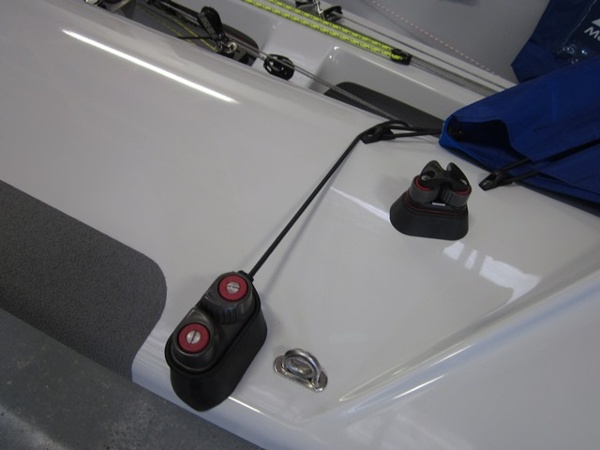

Out to Harken 468 cam cleats on both sidetanks. Cleats behind jib brackets.

NZD $150.00  ex GST

Harken cam cleat (338) and flip-flop block (437) on port side top of centrecase with shockcord retraction

NZD $110.00  ex GST

To clam cleat and Harken flip-flop block (437) on port side top of centrecase with shockcord retraction

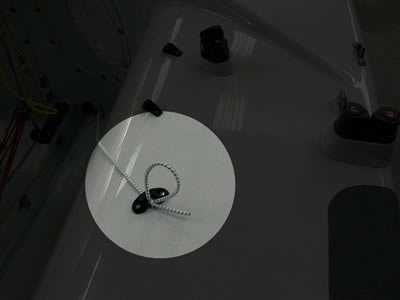

Plastic ball stopper on shockcord retraction line

5mm spectra to clam cleat

5mm spectra to cam cleat

Trapeze Adjuster 1:1 with ring

Trapeze Adjuster 2:1 with ring

Flat clam cleat

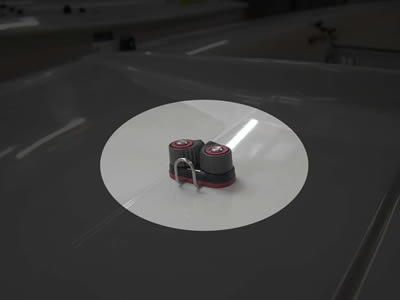

Harken (338) cam cleat with wire fairlead

3M Deck Tread non-skid fitted to side decks

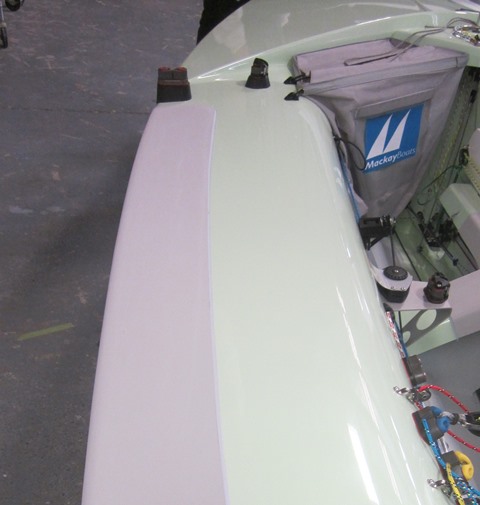

EVA upgrade- non-skid fitted to side-decks

NZD $250.00  ex GST

EVA upgrade - non-skid fitted to side-decks.

Extra wide and extra long

NZD $290.00  ex GST

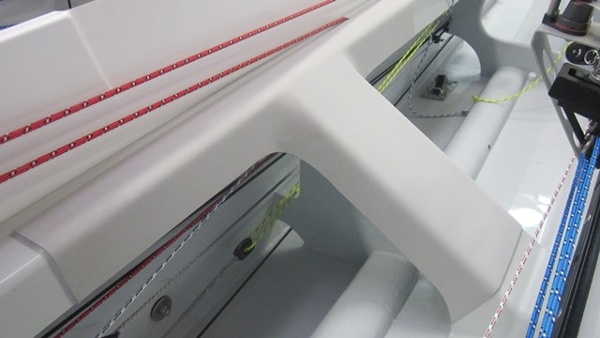

EVA non-skid fitted to thwarts

NZD $130.00  ex GST

Standard Mackay DeckTread by 3M

NZD $250.00 EA ex GST
NZD $230.00 EA ex GST
NZD $190.00 PR ex GST
NZD $110.00 EA ex GST
NZD $86.00 EA ex GST
NZD $45.00 EA ex GST
NZD $15.00 EA ex GST
NZD $1966.00 EA ex GST
NZD $1700.00 EA ex GST
NZD $1391.00 EA ex GST
NZD $1100.00 EA ex GST
NZD $1027.00 EA ex GST
NZD $580.00 EA ex GST
